Description
With the brake of the Sim Pedals Sprint being able to cope with up to 65kg of force, standard rigs often show excessive flex under these loads. This baseplate helps to create a rigid mounting platform for your pedals.

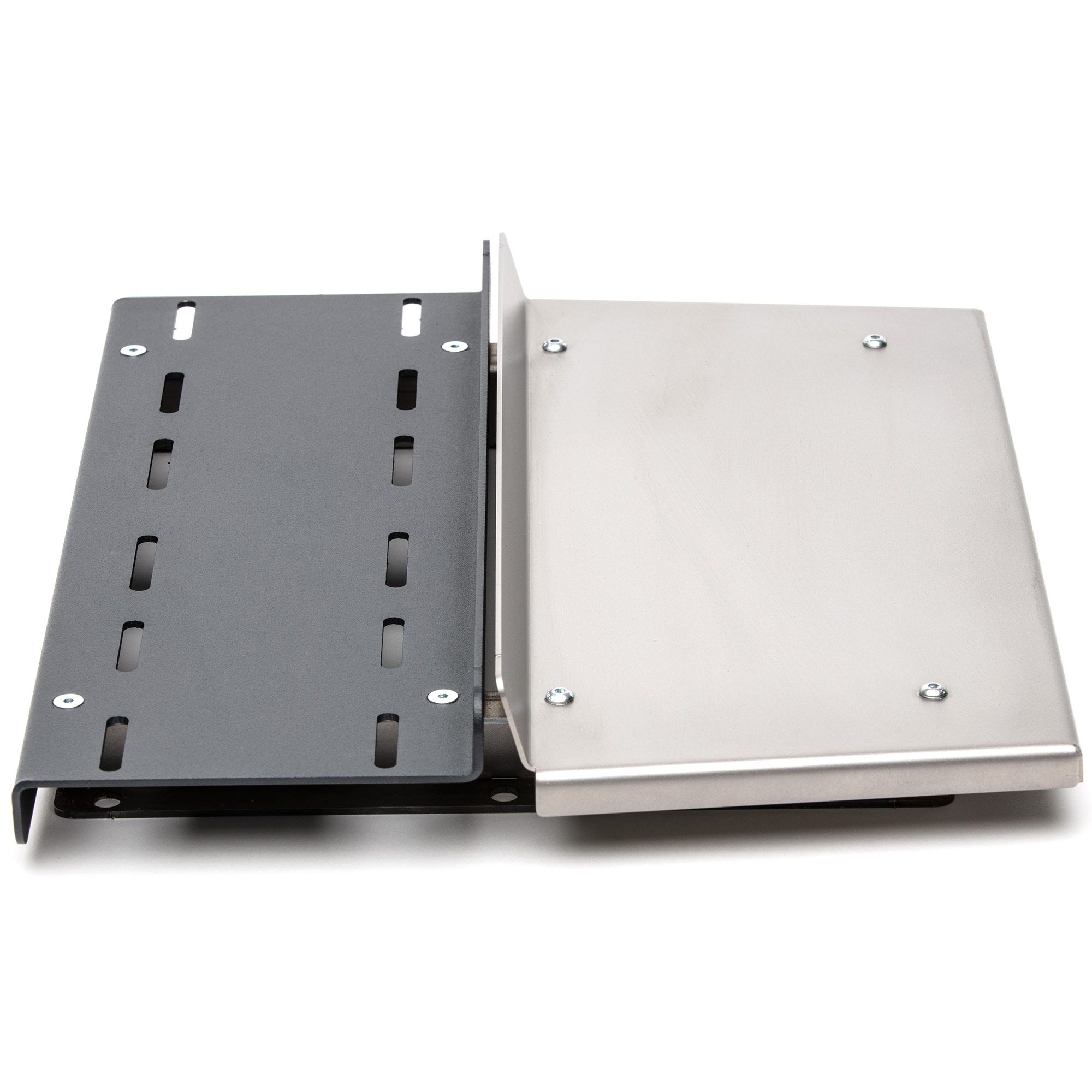

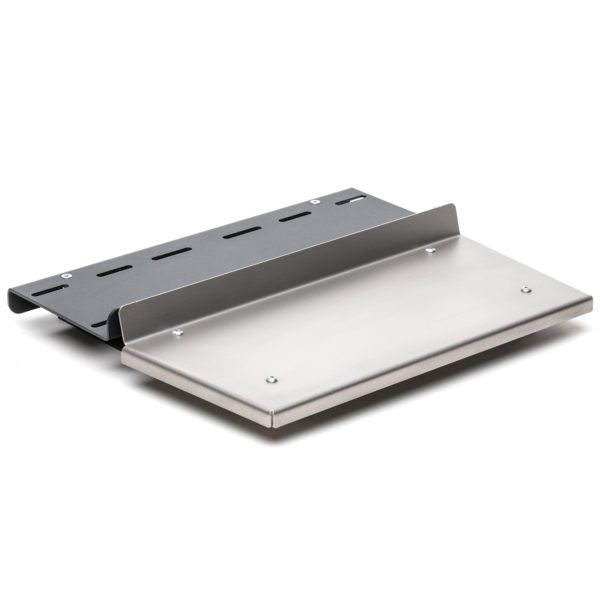

The baseplate assembly consists of multiple elements: A pedal plate on which you mount the pedals, a height adjustable heel plate as well as two brackets which are used to secure the baseplate to an underlying frame.
Mounting hardware is supplied to mount the pedals to the baseplate, as well as hardware to mount the baseplate to a 6mm thick underlying plate.
Pedal plate
The baseplate mounting points for the pedals are slots allowing for lateral adjustment of individual pedals. The dimensions of these lateral slots are 29mm for the brake and 24mm for the throttle and clutch.
Every single pedal can also be adjusted 12,5mm backwards and forwards through the slots in the pedal feet themselves.
Heel plate
The heel plate on the Sim Pedals Sprint Baseplate is height adjustable. You can either put it in the default position (0mm elevation), or use spacers to raise it. Two types of spacers (20mm and 40mm) are supplied in order to put the heel plate in an elevated position.

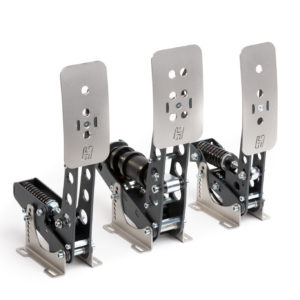

This baseplate is only compatible with our Sim Pedals Sprint product.
The mounting holes on the brackets are compatible with TM T3PA and T3PA Pro (235mm) pedal sets. Six mounting points on the brackets are provided in total, giving plenty of options mount the baseplate to aluminium profiles or create your own drilling template to install the baseplate to your rig.
